Connect Desk Light

grandMA3 User Manual » First Steps » Connect Desk Light
Version 2.5

The grandMA3 comes with one or two desk lights, depending on the model. For more information see, delivery contents.

Connect the 4-pin XLR connector to the desk light connectors on the rear panel. The desk lights are connected.

To adjust the light level, see Desk Lights.

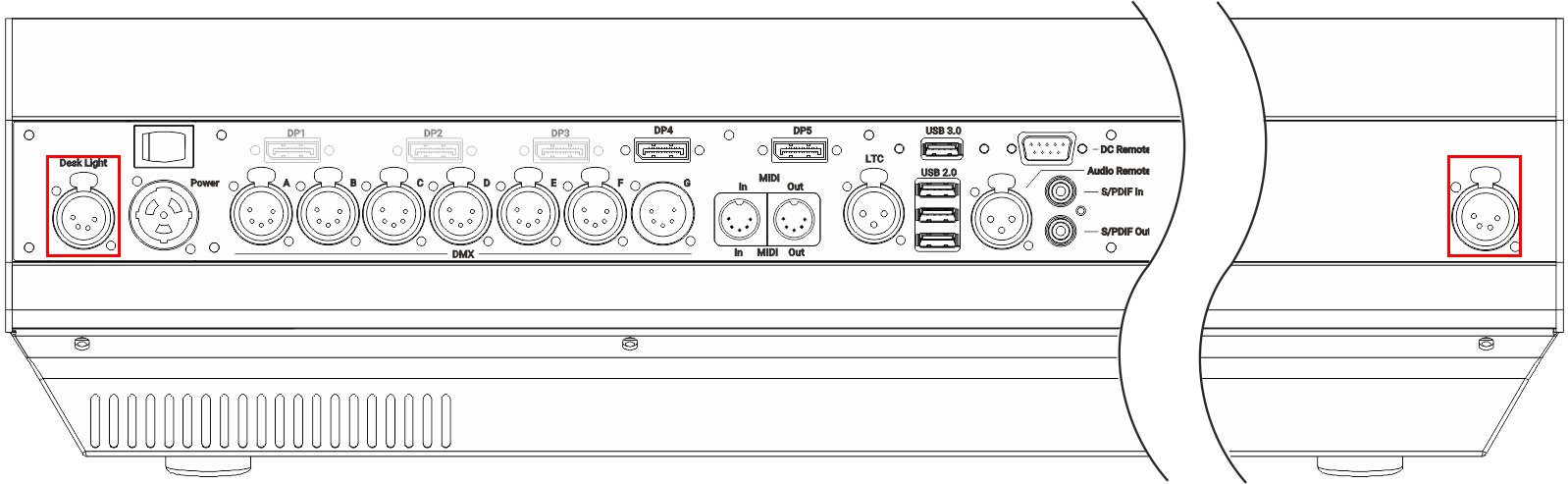

grandMA3 full-size (CRV) and light (CRV) rear panel – desk light

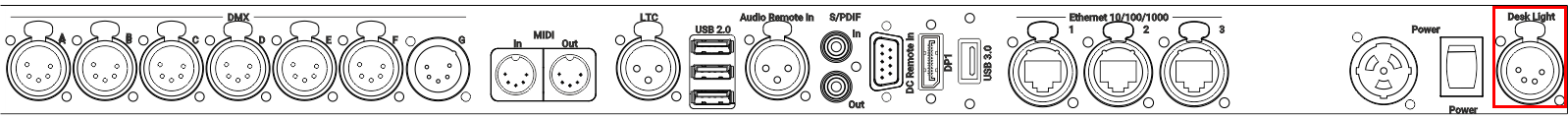

grandMA3 compact (XT) rear panel – desk light

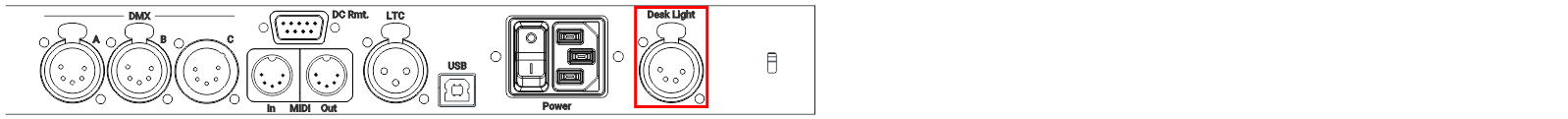

grandMA3 onPC command wing (XT) rear panel – desk light

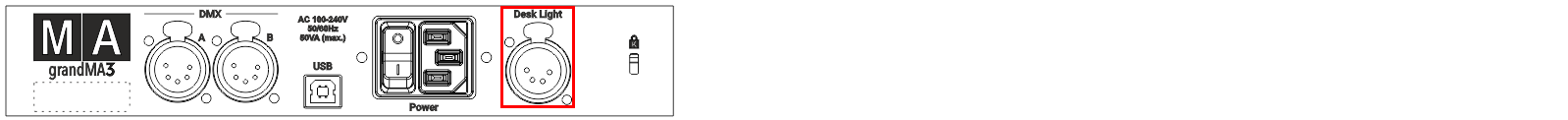

grandMA3 fader wing rear panel – desk light

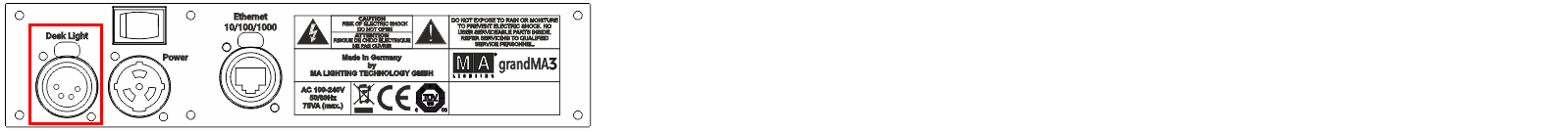

grandMA3 extension rear panel – desk light

For more information, see Connector Pin Assignment.
