Technical Data

Hint:
grandMA3 xPort Node DIN-Rails are powered by a direct power connection using a terminal block connector, a PoE switch, or a PoE injector.

Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!

Important:
Use the USB port for updates only. Do not connect any peripheral devices (for example, mouse, keyboard).
Each 3pin DMX512-A Out can be individually configured as DMX In.

DMX: The maximum length of the cable is 350 m (in ideal conditions).
Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.

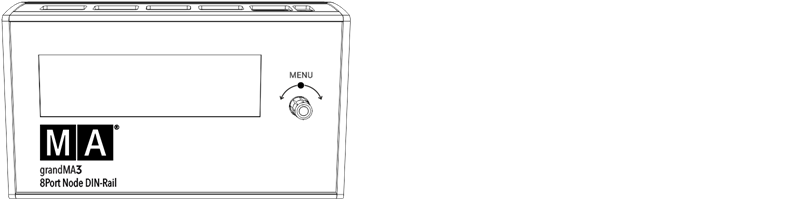

grandMA3 8Port Node DIN-Rail

Technical Data
Parameters	None
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

Outputs grandMA3 8Port Node DIN-Rail

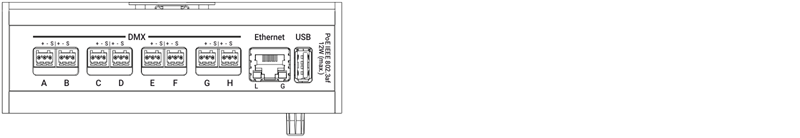

*grandMA3 8Port Node DIN-Rail rear panel*

Number	Connector
8 x	3pin PCB connector (DMX512-A Out)
1 x	RJ45
1 x	USB 2.0 (type A)

grandMA3 4Port Node DIN-Rail

Technical Data
Parameters	None
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

Outputs grandMA3 4Port Node DIN-Rail

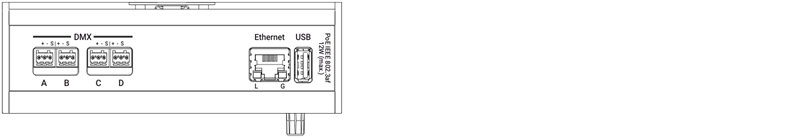

*grandMA3 4Port Node DIN-Rail rear panel*

Number	Connector
4 x	3pin PCB connector (DMX512-A Out)
1 x	RJ45
1 x	USB 2.0 (type A)

grandMA3 2Port Node DIN-Rail

Technical Data
Parameters	None
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

Outputs grandMA3 2Port Node DIN-Rail

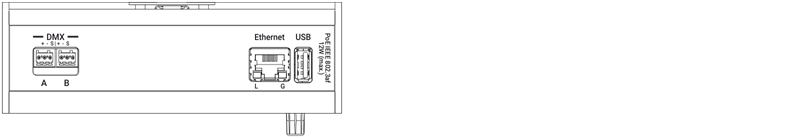

*grandMA3 2Port Node DIN-Rail rear panel*

Number	Connector
2 x	3pin PCB connector (DMX512-A Out)
1 x	RJ45
1 x	USB 2.0 (type A)

grandMA3 onPC 8Port Node DIN-Rail 4k

Technical Data
Parameters	4 096 (HTP/LTP)
Parameters Mode2	2 048 (HTP/LTP)
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

grandMA3 onPC 4Port Node DIN-Rail 4k

Technical Data
Parameters	4 096 (HTP/LTP)
Parameters Mode2	2 048 (HTP/LTP)
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

grandMA3 onPC 2Port Node DIN-Rail 2k

Technical Data
Parameters	4 096 (HTP/LTP)
Parameters Mode2	1 024 (HTP/LTP)
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC/max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15 VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)
