Technical Data
Technical Data
Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Important:
Power cable and connector are not included in the delivery.
Power cable and connector are not included in the delivery.
- DMX: The maximum length of the cable is 350 m (in ideal conditions).
| Technical Data | |
|---|---|
| Parameters | 4 096 |
| Parameters Mode2 | not applicable (no Mode 2) |
| Operating voltage | 100-240 V AC, 50/60 Hz |
| Net weight | 10 kg / 23 lbs |
| Power | max. 50 VA |
| Dimensions | 620 x 427 x 102 mm / 24 x 17 x 4 in |

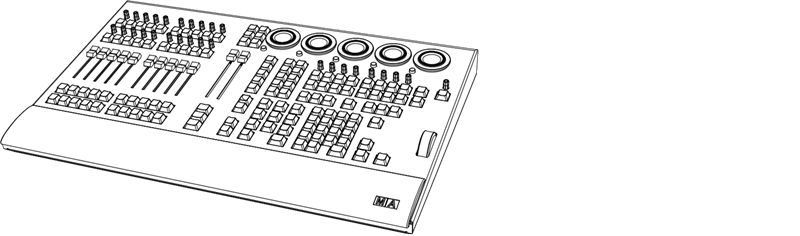

Outputs grandMA3 onPC command wing

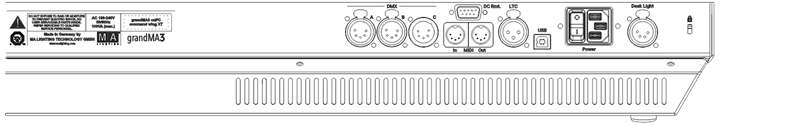

| Number | Connector |
|---|---|
| 1 x | IEC connector |
| 2 x | DMX512-A OUT (5pin XLR female) |
| 1 x | DMX512-A IN (5pin XLR male) |
| 1 x | MIDI IN (5pin DIN female) |
| 1 x | MIDI OUT (5pin DIN female) |
| 1 x | LTC – Linear Time Code (3pin XLR female) |
| 1 x | GPI – General Purpose Input (D-SUB DE9 female – DC remote control) |
| 1 x | USB 2.0 (type B) |
| 1 x | LED desk light (4pin XLR female) |
