grandMA3 User Manual Publication

grandMA3 Nodes

grandMA3 User Manual » Device Overview » grandMA3 Nodes
Version 2.3

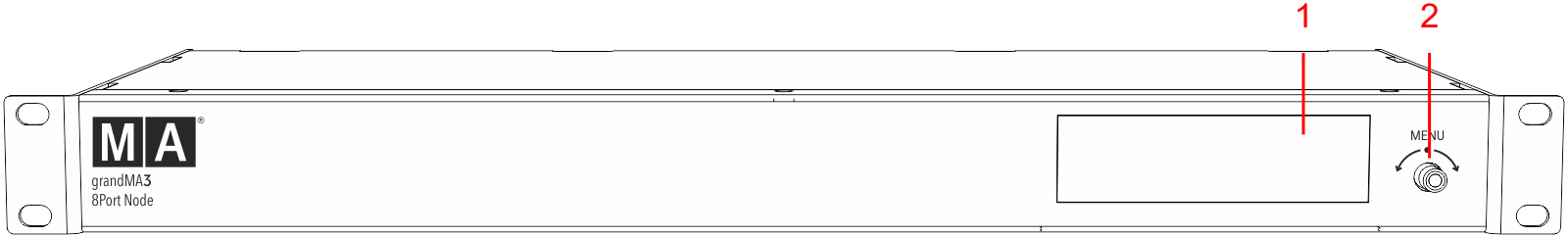

grandMA3 8Port Node front panel

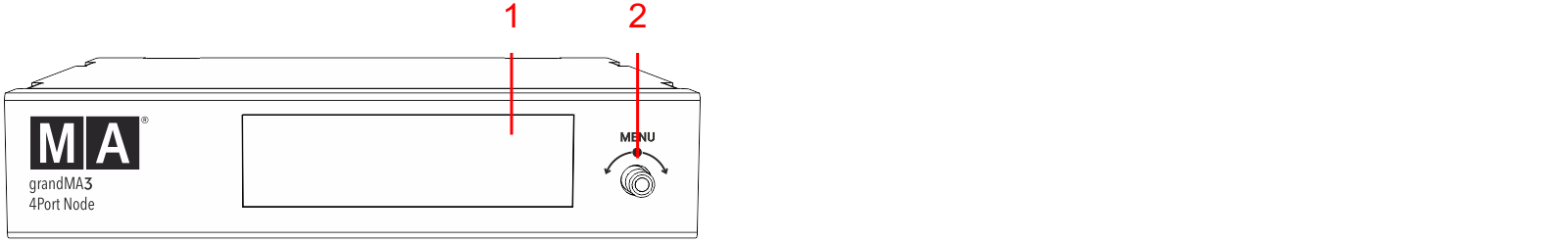

grandMA3 4Port Node front panel
grandMA3 2Port Node front panel
  1. Display
  2. Rotary knob

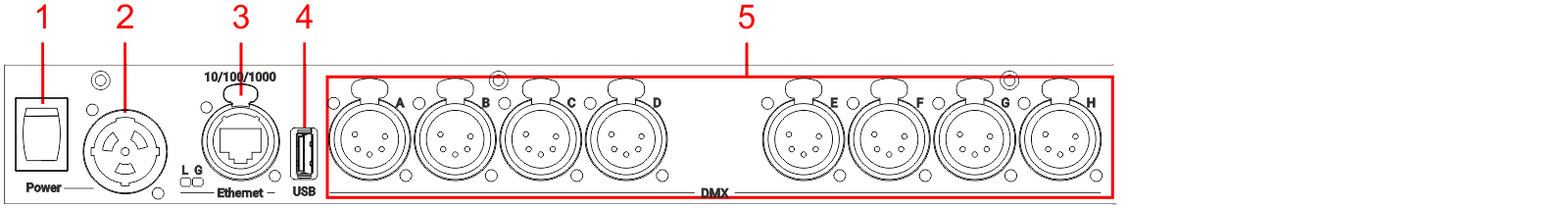

grandMA3 8Port Node rear panel

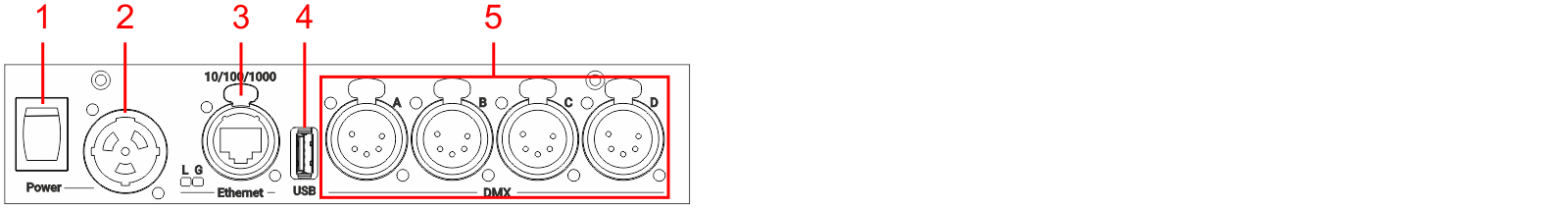

grandMA3 4Port Node rear panel

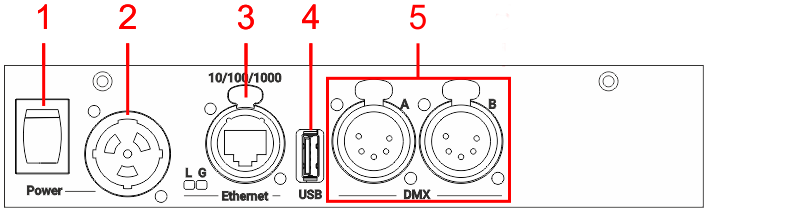

grandMA3 2Port Node rear panel
  1. Power switch
  2. powerCON TRUE1
  3. Ethernet with L (link) and G (gigabit) LEDs
  4. USB port
  5. DMX-512-A OUT (5pin XLR female)
