Technical Data

Hint:
grandMA3 I/O nodes PoE can also be powered by a direct power connection using a PoE switch, or a PoE injector.

Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!

Important:
Power cable and connector are not included in the delivery.

Important:
Use the USB port for updates only. Do not connect any peripheral devices (for example, mouse, keyboard).

Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.

grandMA3 I/O Node

Technical Data
Parameters	None
Display	3.9 '' TFT color
Operating voltage (electrical grid)	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af; 48 V DC/max. 12 W
Net weight	2 kg / 5 lbs
Power	max. 15 VA
Dimensions	207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)

Outputs grandMA3 I/O Node

Number	Connector
1 x	powerCON TRUE1*
1 x	MIDI In
1 x	MIDI Out
1 x	LTC
1 x	DC Remote IN
1 x	etherCON/RJ45 L (link) G (gigabit)
1 x	USB 2.0 (type A)**

* registered trademark of Neutrik AG, Liechtenstein
** Do not connect any peripheral device (mouse, keyboard, or similar).

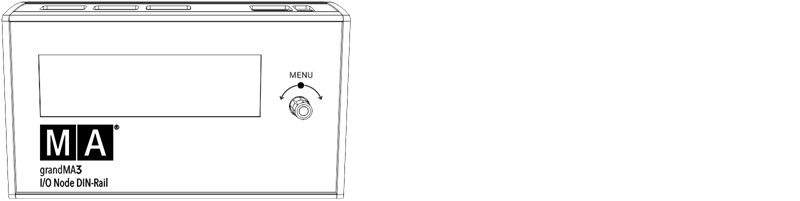

grandMA3 I/O Node DIN-Rail

Technical Data
Parameters	None
Display	3.9" TFT Color
Operating voltage	100-240 V AC, 50/60 Hz
Operating voltage (PoE)	IEEE 802.3af 48 V DC / max. 12 W
Net weight	1 kg / 3 lbs
Power	max. 15VA
Dimensions	150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)

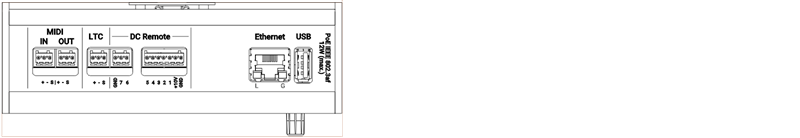

Outputs grandMA3 I/O Node DIN-Rail

Number	Connector
1 x	MIDI In
1 x	MIDI Out
1 x	LTC
1 x	DC Remote
1 x	etherCON/RJ45 L (link) G (gigabit)
1 x	USB 2.0 (type A)**

** Do not connect any peripheral device (mouse, keyboard, or similar).
