Select Fixtures

First, fixtures must be selected to operate and change the values of attributes (for example, dimmer, pan, tilt, or zoom).

To select fixtures, use one of the following methods:

• Type the fixture ID in the command line using the numeric keys.
• Tap at the fixtures in a Fixture Sheet.
• Draw a lasso around the fixtures in the 3D Viewer.
• Tap a Group Pool object. See Create Groups.
• Tap a Preset Pool object. See Create New Presets.

	Hint:
	See the System Colors topic to learn more about the font colors used when selecting or deselecting fixtures in the fixture sheet.

---

Examples

Requirements:

• 10 patched fixtures. See Add Fixtures to the Show.
• A fixture sheet window is open.

To select fixtures 1 thru 5, press the following hardkeys on the console or use the command section menu  :

Fixture 1 Thru 5 Please

This command is visible in the command line input:

User name[Fixture]>Fixture 1 Thru 5

Fixtures 1 thru 5 are selected. The five selected fixtures are in a yellow font in the Fixture Sheet window.

---

To exclude fixtures from a selection, for example, types:

User name[Fixture]>Fixture 1 Thru 10 - 6 Thru 8

Fixtures 1 to 5 are selected, 6 to 8 are deselected, and 9 and 10 are selected.

---

To make the same selection of fixtures as shown in the example above, using a different syntax, type:

User name[Fixture]>Fixture 1 Thru 5 + 9 Thru 10

 To select fixtures in two commands, type:

User name[Fixture]>Fixture 1 Thru 5

User name[Fixture]>Fixture 9 + 10

To select fixtures 9 and 10 in the example above,  + or Thru can be used.

	Important:
	Some keys are used to navigate the sub-selection of fixtures, which is part of the MAtricks function. The keys have an on-screen version called the Selection Bar, which can also be used to select fixtures.

Recursive Selection of Fixtures

Some fixtures have multiple sub-fixtures. The following examples demonstrate how to select fixtures and their sub-fixtures in various orders and hierarchies using an additional dot (.) character.

	Hint:
	See the First Patch topic in the Quick Start Guide to learn more about sub-fixtures.

Requirement for this example:

• 10 Ayrton Alienpix - RS Ex 16-bit patched. See Add Fixtures to the Show.
• Fixtures spot numbered from 301 to 310.
• A fixture sheet window is open.

To select fixture 301, type:

User name[Fixture]>Fixture 301

Only the main fixture is selected.

• A dot (.) can be added to the main fixture's selection syntax to select all sub-fixtures quickly.

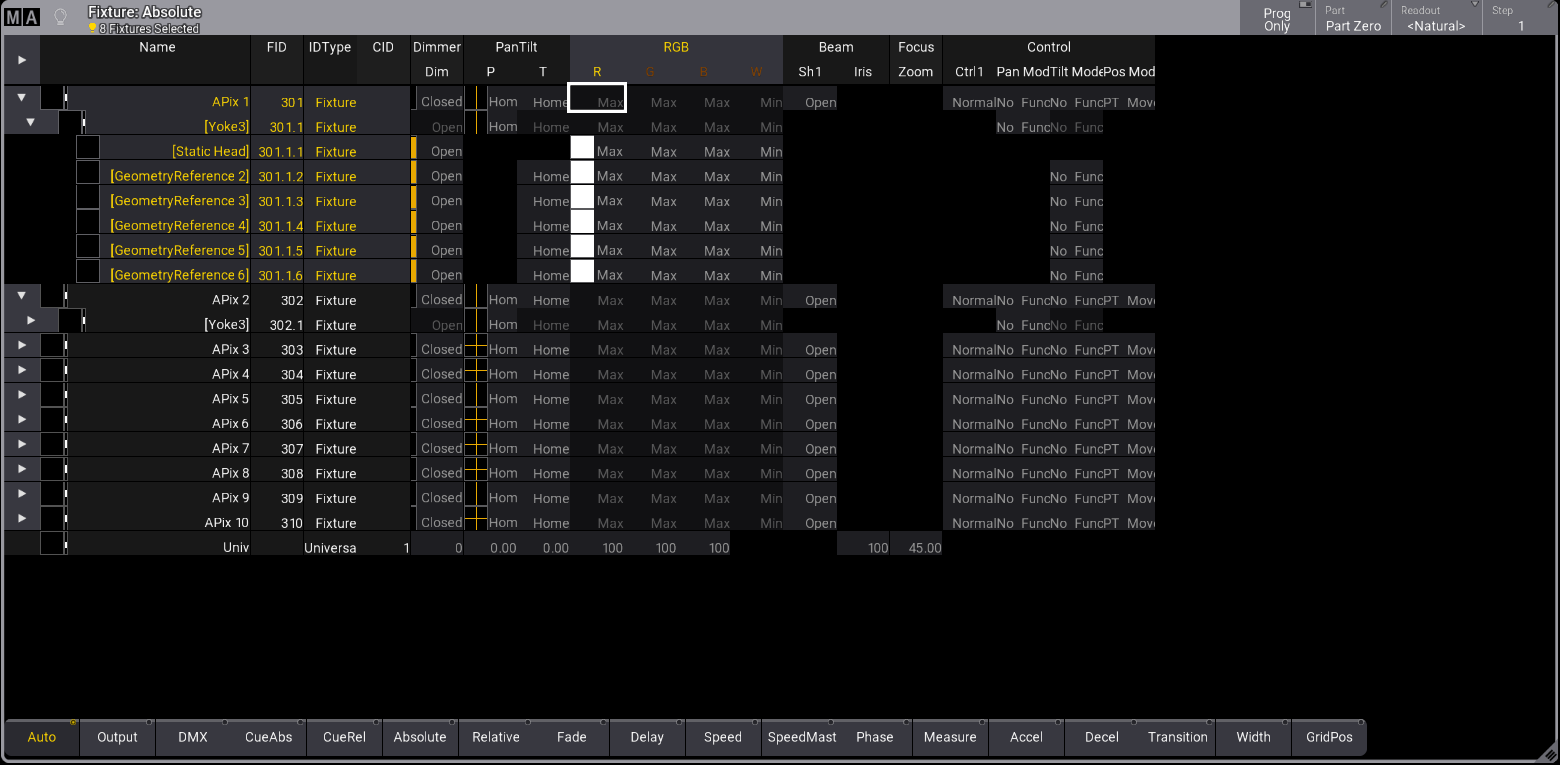

To select fixture 301 and all its sub-fixtures, type:

User name[Fixture]>Fixture 301.

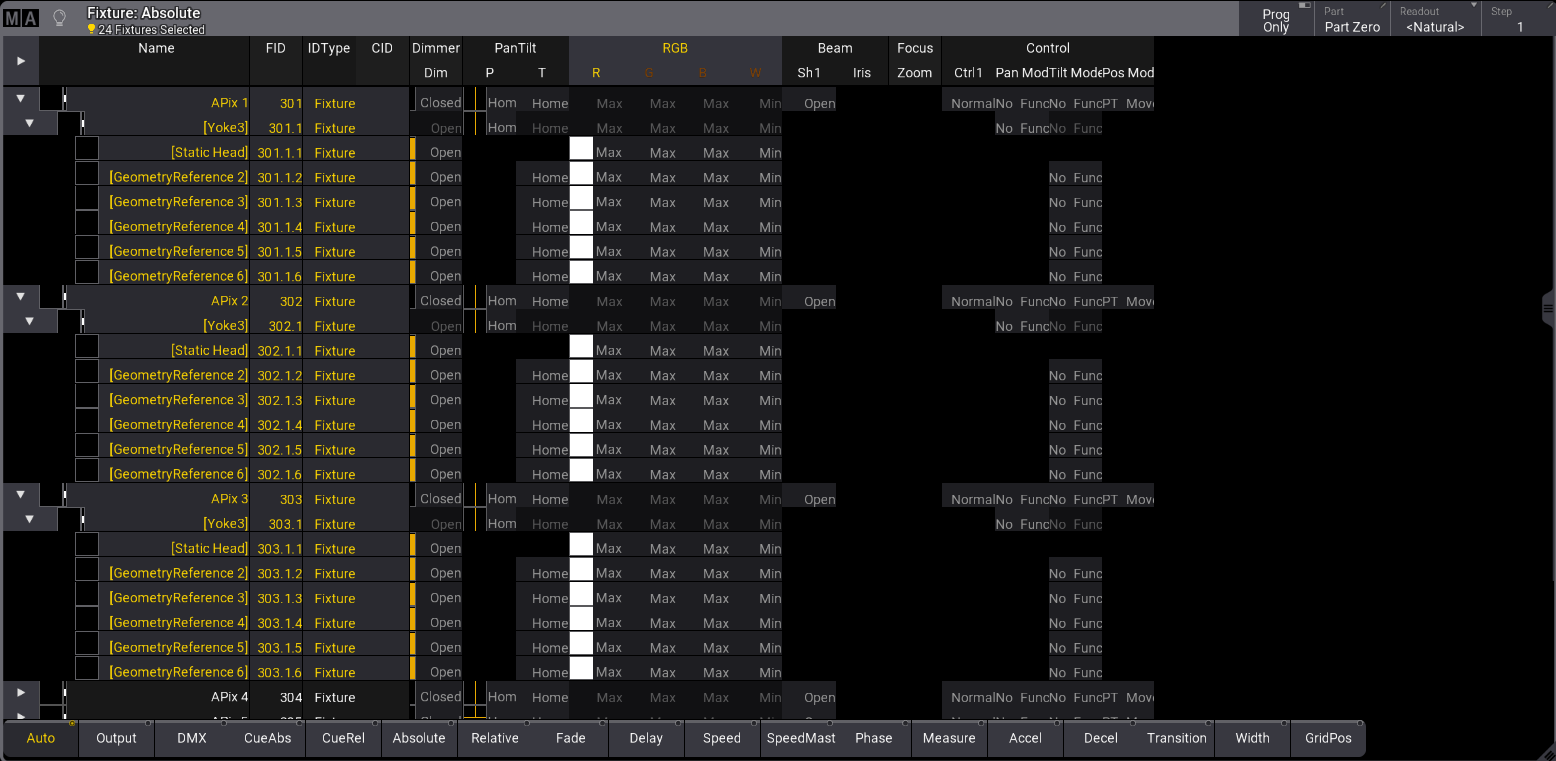

To select the main fixtures and all sub-fixtures of fixtures 301 thru 303, type:

User name[Fixture]>Fixture 301 Thru 303.

• The dot selects the sub-fixtures downwards from the specified level. Therefore, selecting only the pixels of an AlienPix is also possible.

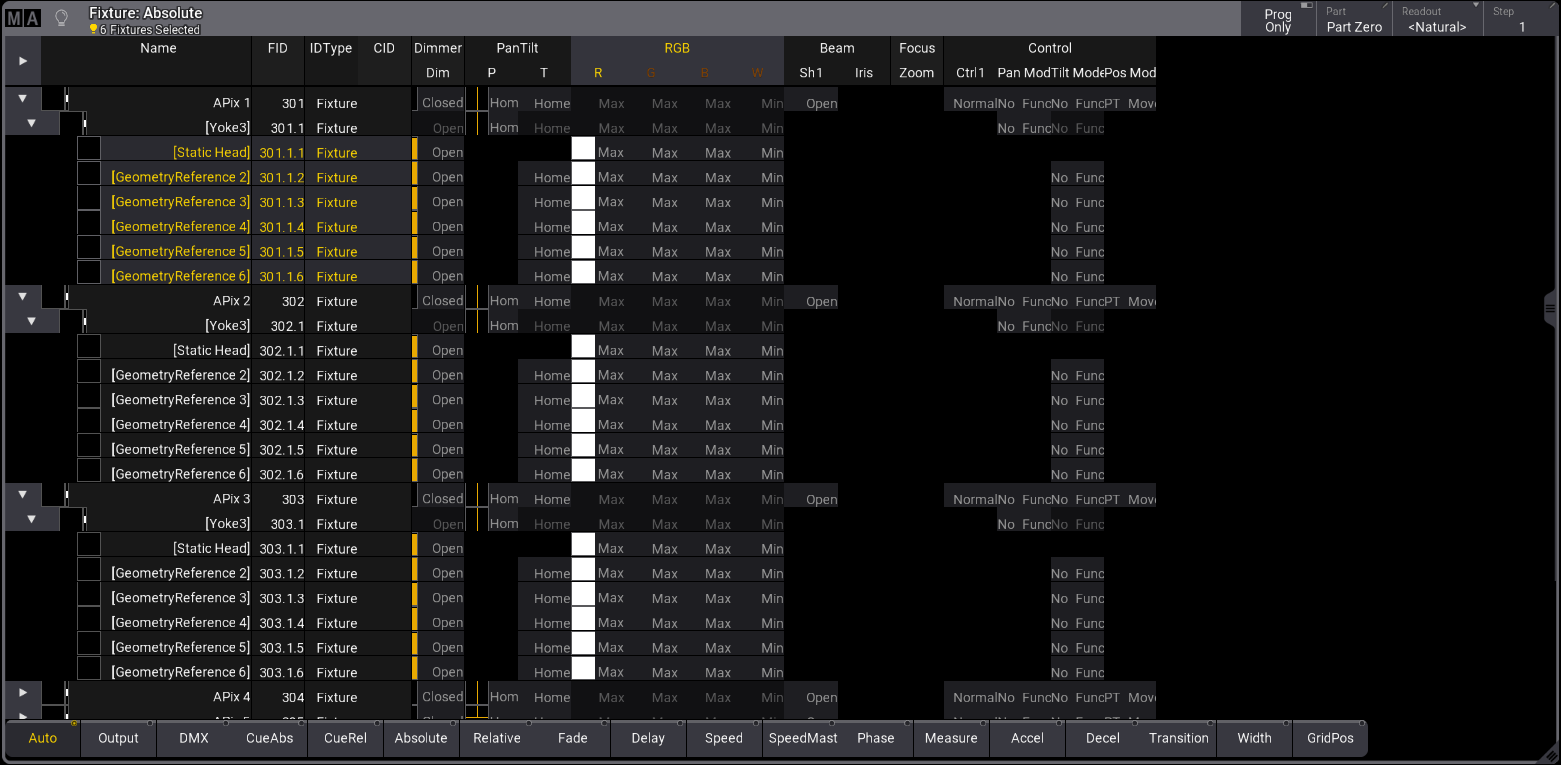

To select all pixels of an AlienPix, type:

User name[Fixture]>Fixture 301.1. Thru

To select pixels of an AlienPix in particular, type:

User name[Fixture]>Fixture 301.1. Thru 4 + 6
