Connect MIDI

grandMA3 User Manual » First Steps » Connect MIDI
Version 2.5

MIDI connectors can be used for MIDI input or output. For example, to send the MIDI timecode signal to the sound engineer.

Location of MIDI Connectors on Different Products

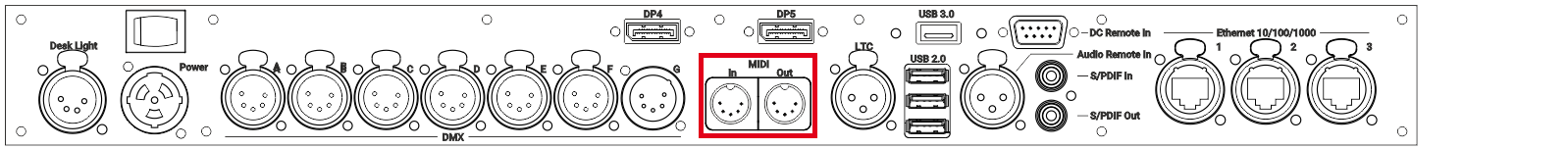

grandMA3 full-size (CRV) and light (CRV) rear panel – MIDI

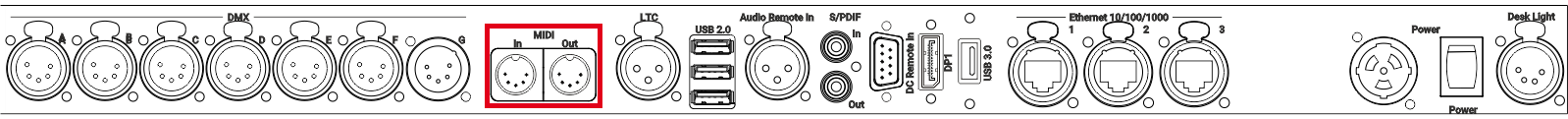

grandMA3 compact (XT) rear panel – MIDI

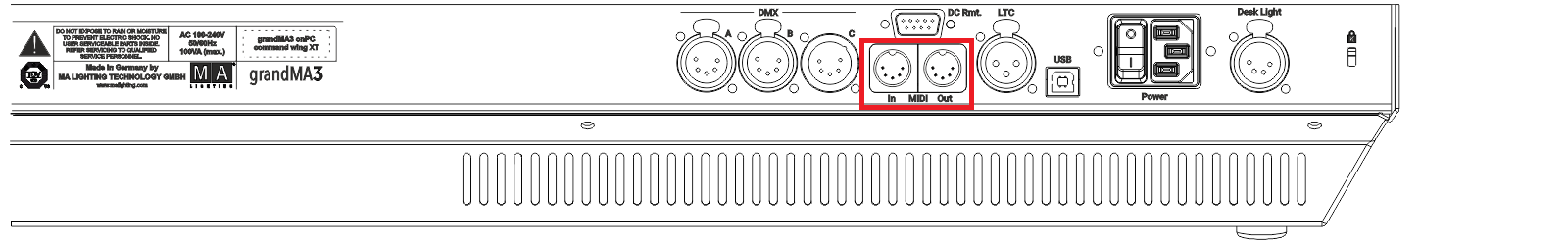

grandMA3 onPC command wing (XT) rear panel – MIDI

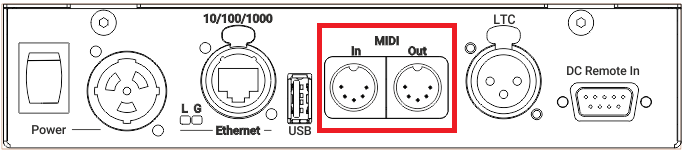

grandMA3 I/O Node rear panel – MIDI

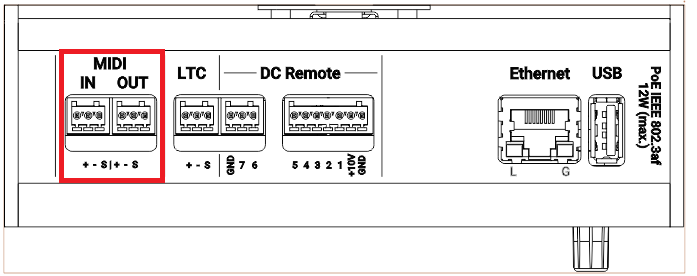

grandMA3 I/O Node DIN-Rail top panel – MIDI
Hint:
For more information on DIN and Euroblock connector pinout, see Connector Pin Assignment.

Setting the MIDI Mode

To adjust the MIDI Remotes settings, see MIDI Data Mode in Remote In and Out.

To configure MIDI Port settings for each grandMA3 device, see Output Configuration.



  1. To access the Output configuration window, press Menu and tap Connector Configuration.

-OR-

  1. Use the command line to open the menu:
User name[Fixture]>Menu "ConnectorConfig"
  1. To select a  MIDI Data Mode, tap and hold or right-click MIDI Data Mode. A pop-up window opens.
  2. To set the MIDI direction, select In, Out, or Through.
  3.  Connect the MIDI source to the DIN connector on the rear panel of the console.
Hint:
MIDI Data Mode 'Through' receives and forwards MIDI Notes, MIDI Control Changes, and MIDI Program Changes.
