grandMA3 onPC rack-unit

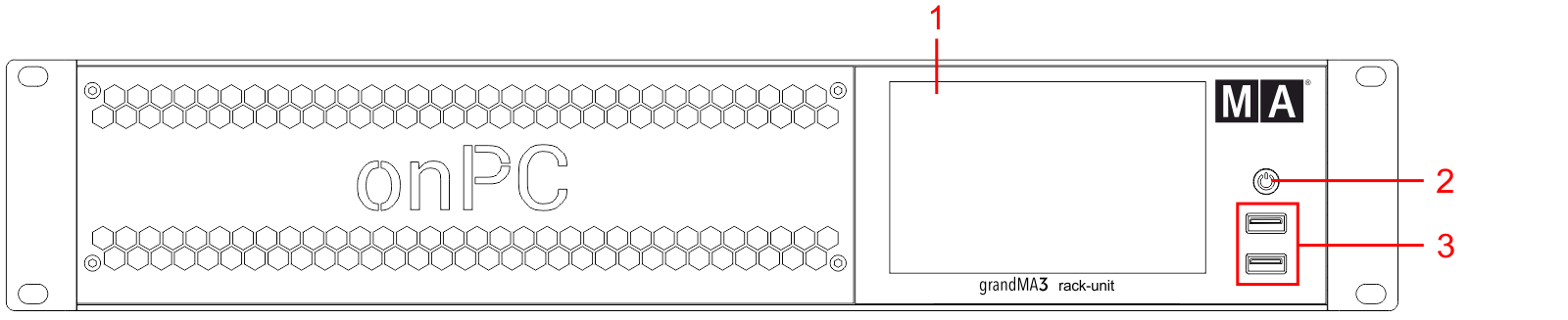

1. Screen
2. Power key
3. USB 2.0

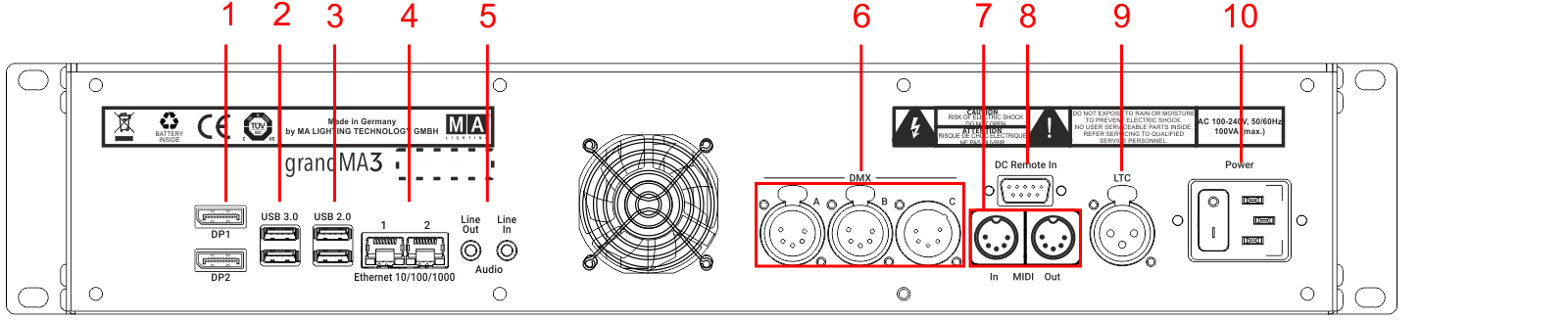

1. DisplayPort 1+2
2. USB 3.0
3. USB 2.0
4. Ethernet 1+2
5. Line In+Out
6. DMX-512-A A-B (5pin XLR female) + C (5pin XLR male)
7. MIDI In+Out
8. DC Remote Control
9. LTC
10. Power switch + IEC connector

For technical specifications see Technical Data in the grandMA3 Quick Manual onPC rack-unit.
