Numerical Order of Screens
grandMA3 consoles number their screens in a specific order. Different consoles within the range have different amounts of internal screens and connections for external monitors. This topic covers those physical differences as well as the numbering system applied to those screens.
grandMA3 full-size and light

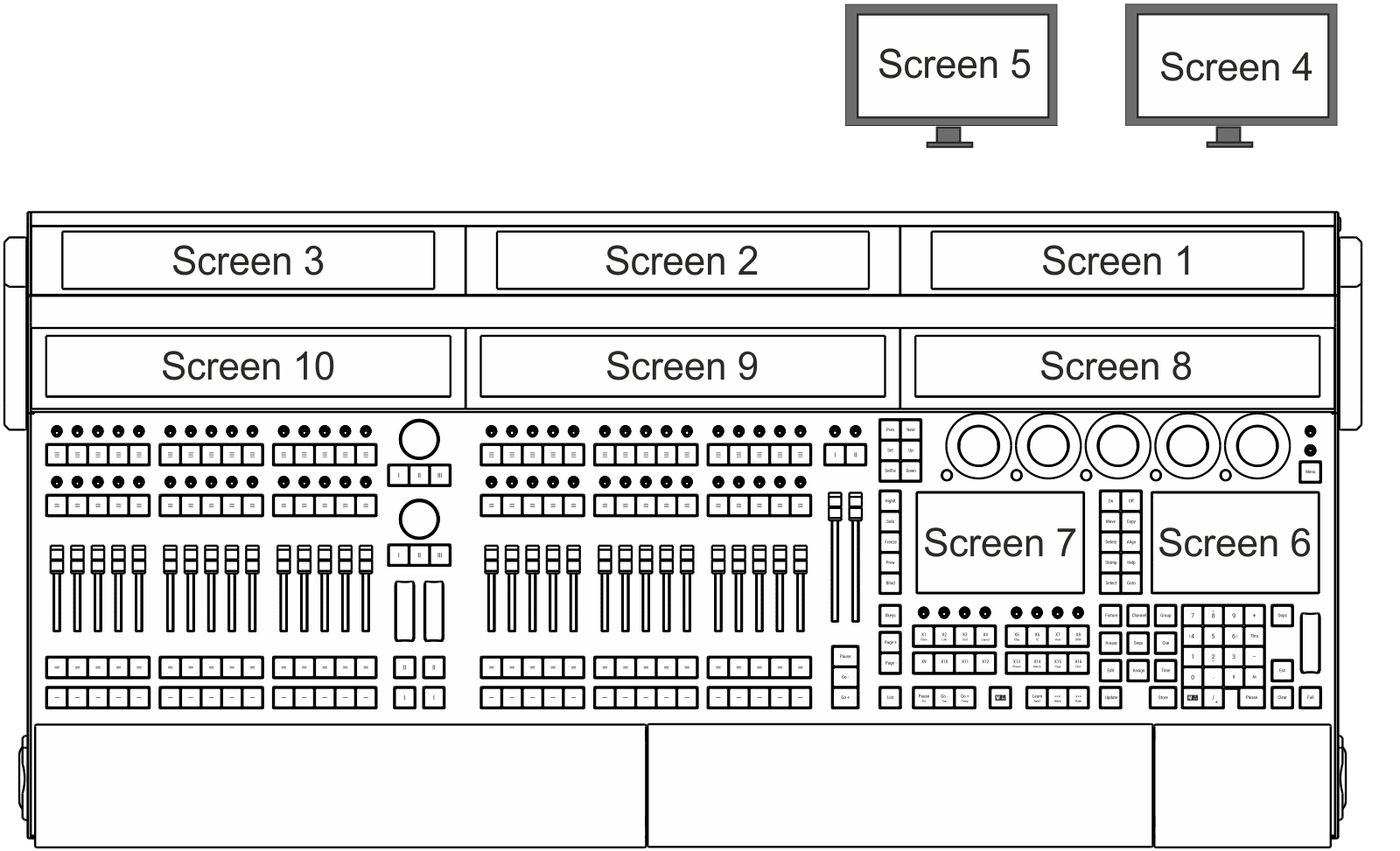

The grandMA3 full-size includes three internal 15.6-inch screens mounted in a double-hinged monitor wing, three internal 14.9-inch letterbox screens, two internal 7-inch screens, and two connections for optional external monitors. The grandMA3 light includes two internal 15.6-inch screens mounted in a double-hinged monitor wing, two internal 14.9-inch letterbox screens, two internal 7-inch screens, and two connections for optional external monitors. The numbering of these screens is detailed in the following table:
| Screen number | Display Size | Resolution | Remark |
|---|---|---|---|
| Screen 1 | 15.6-inch | 1,920 x 1,080 | |
| Screen 2 | 15.6-inch | 1,920 x 1,080 | |
| Screen 3 | 15.6-inch | 1,920 x 1,080 | Only on grandMA3 full-size |
| Screen 4 | 1,920 x 1,080 | External screen | |
| Screen 5 | 1,920 x 1,080 | External screen | |
| Screen 6 | 7-inch | 800 x 480 | Right command screen |
| Screen 7 | 7-inch | 800 x 480 | Left command screen |
| Screen 8 | 14.9-inch | 1,280 x 242 | Letterbox encoder screen |
| Screen 9 | 14.9-inch | 1,280 x 242 | Right letterbox executor screen |
| Screen 10 | 14.9-inch | 1,280 x 242 |
Left letterbox executor screen, on grandMA3 full-size or
first grandMA3 extension connected to grandMA3 light |
| Screen 11 | 14.9-inch | 1,280 x 242 |
Letterbox executor screen, on grandMA3 extension connected to grandMA3 full-size or
second grandMA3 extension connected to grandMA3 light |
grandMA3 full-size CRV and light CRV

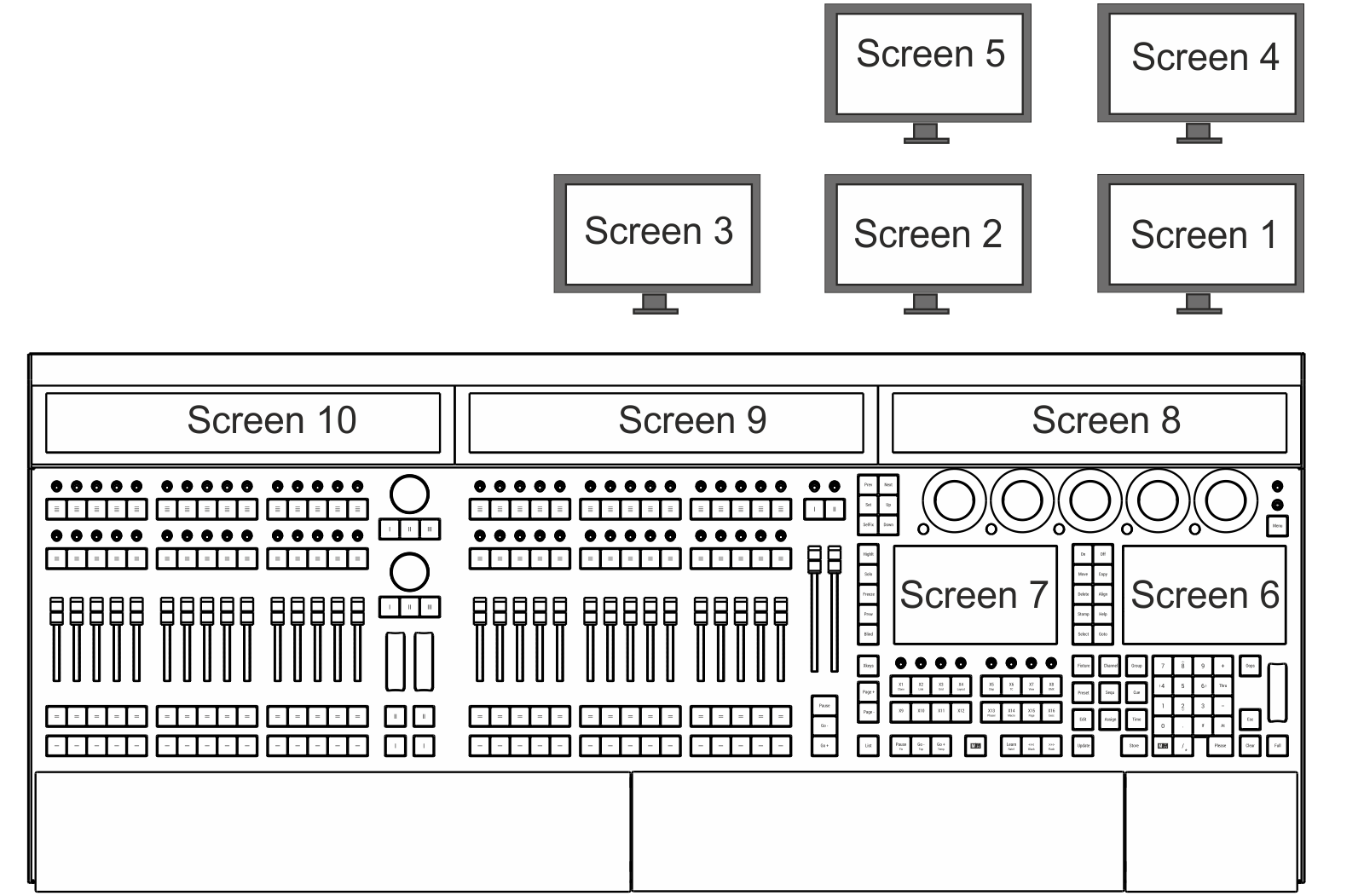

The grandMA3 full-size CRV includes three internal 14.9-inch letterbox screens, two internal 7-inch screens, and five connections for optional external monitors. The grandMA3 light CRV includes two internal 14.9-inch letterbox screens, two internal 7-inch screens, and four connections for optional external monitors. The numbering of these screens is detailed in the following table:
| Screen number | Display Size | Resolution | Remark |
|---|---|---|---|
| Screen 1 | 1,920 x 1,080 | External screen | |
| Screen 2 | 1,920 x 1,080 | External screen | |
| Screen 3 | 1,920 x 1,080 | External screen (only grandMA3 full-size CRV) | |
| Screen 4 | 1,920 x 1,080 | External screen | |
| Screen 5 | 1,920 x 1,080 | External screen | |
| Screen 6 | 7-inch | 800 x 480 | Right command screen |
| Screen 7 | 7-inch | 800 x 480 | Left command screen |
| Screen 8 | 14.9-inch | 1,280 x 242 | Letterbox encoder screen |
| Screen 9 | 14.9-inch | 1,280 x 242 | Right letterbox executor screen |
| Screen 10 | 14.9-inch | 1,280 x 242 |
Left letterbox executor screen, on grandMA3 full-size CRV or
grandMA3 extension connected to grandMA3 light CRV |
| Screen 11 | 14.9-inch | 1,280 x 242 |
Letterbox executor screen, on grandMA3 extension connected to grandMA3 full-size CRV or
second grandMA3 extension connected to grandMA3 light CRV |
grandMA3 compact XT and compact

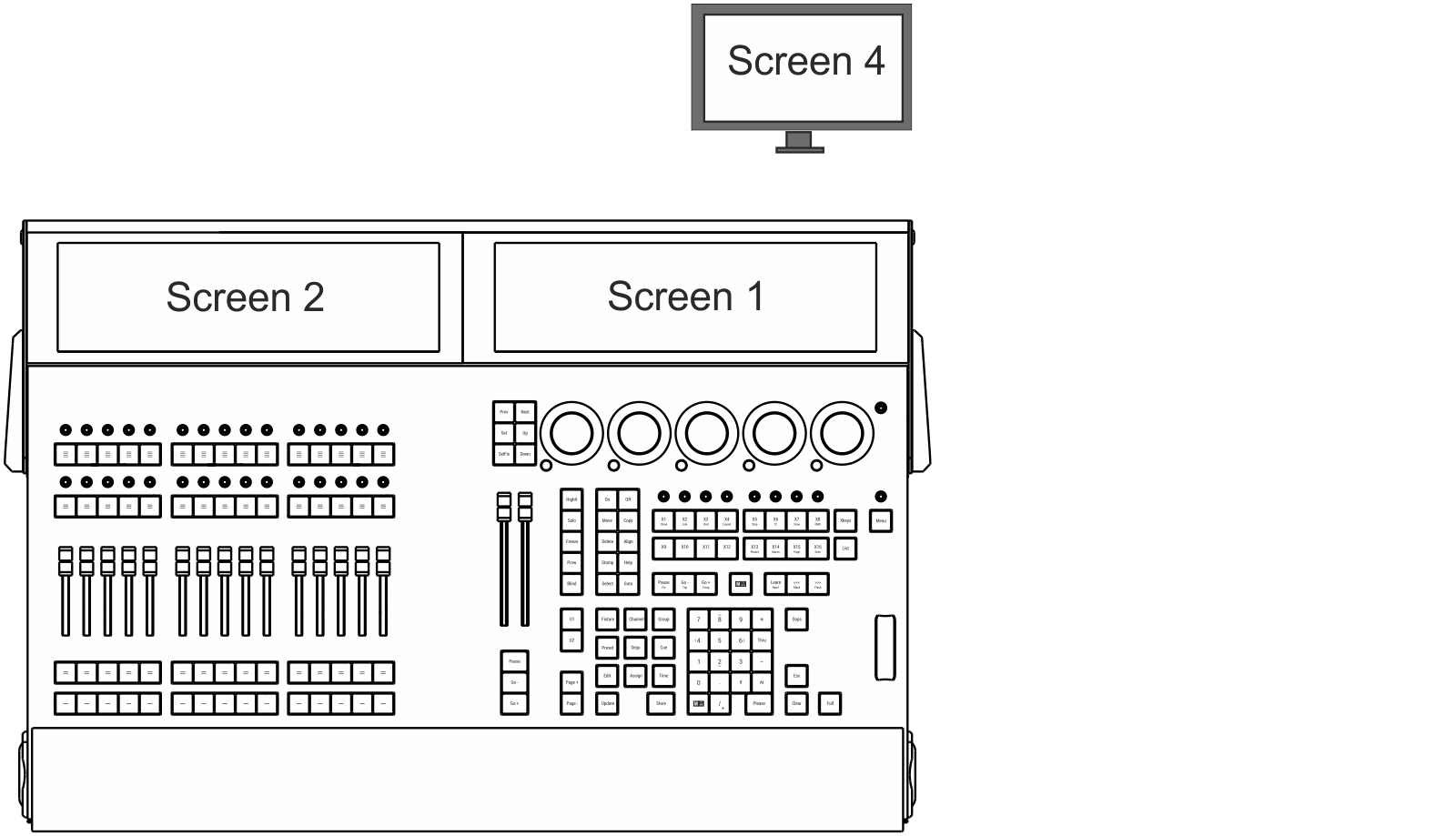

The grandMA3 compact XT includes two internal 15.6-inch screens mounted in a hinged monitor wing and one connection for an optional external monitor. The grandMA3 compact includes one internal 15.6-inch screen mounted in a hinged monitor wing and one connection for an optional external monitor. The numbering of these screens is detailed in the following table:
| Screen number | Display Size | Resolution | Remark |
|---|---|---|---|
| Screen 1 | 15.6-inch | 1,920 x 1,080 | |
| Screen 2 | 15.6-inch | 1,920 x 1,080 | Only on grandMA3 compact XT |
| Screen 4 | 1,920 x 1,080 | External screen |
grandMA3 replay unit

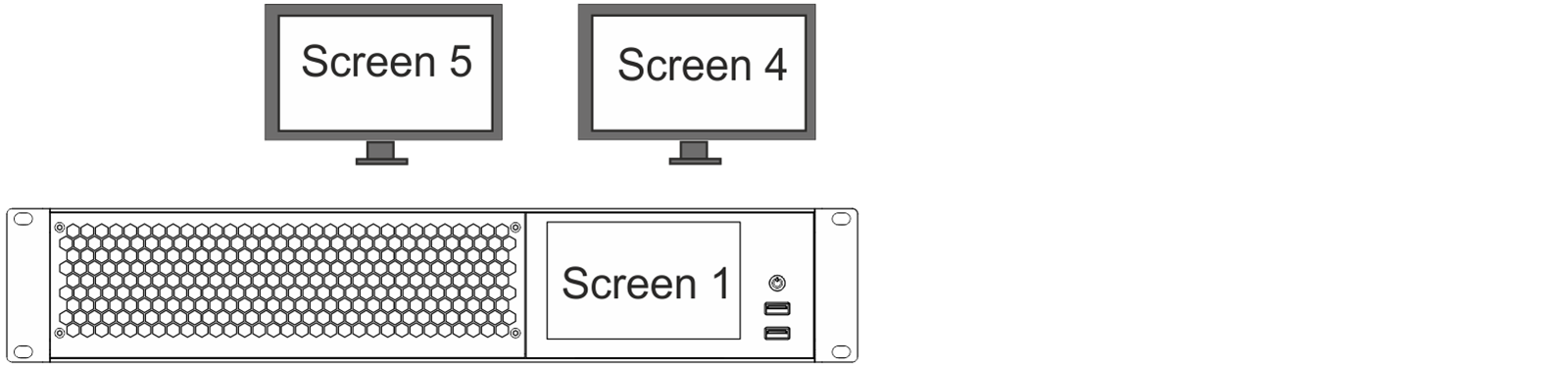

The grandMA3 replay unit includes two connections for optional external monitors. The numbering of these screens is detailed in the following table:
| Screen number | Display Size | Resolution | Remark |
|---|---|---|---|
| Screen 1 | 5-inch | 800 x 480 | Internal command multi-touch screen |
| Screen 4 | 1,920 x 1,080 | External screen | |
| Screen 5 | 1,920 x 1,080 | External screen | |
| Screen 10 | 14.9-inch | 1,280 x 242 |
Letterbox executor screen
on first grandMA3 extension connected to grandMA3 replay unit |
| Screen 11 | 14.9-inch | 1,280 x 242 |
Letterbox executor screen
on second grandMA3 extension connected to grandMA3 replay unit |
| Screen 12 | 14.9-inch | 1,280 x 242 |
Letterbox executor screen
on third grandMA3 extension connected to grandMA3 replay unit |
For more information on connecting external screens, see the Connect External Screens topic.
grandMA3 onPC rack-unit and grandMA3 onPC command wing XT
For onPC stations, the single windows for each display can be freely arranged. The grandMA3 onPC rack-unit does include a 5-inch screen. For more information, see the Displays in grandMA3 onPC topic.
