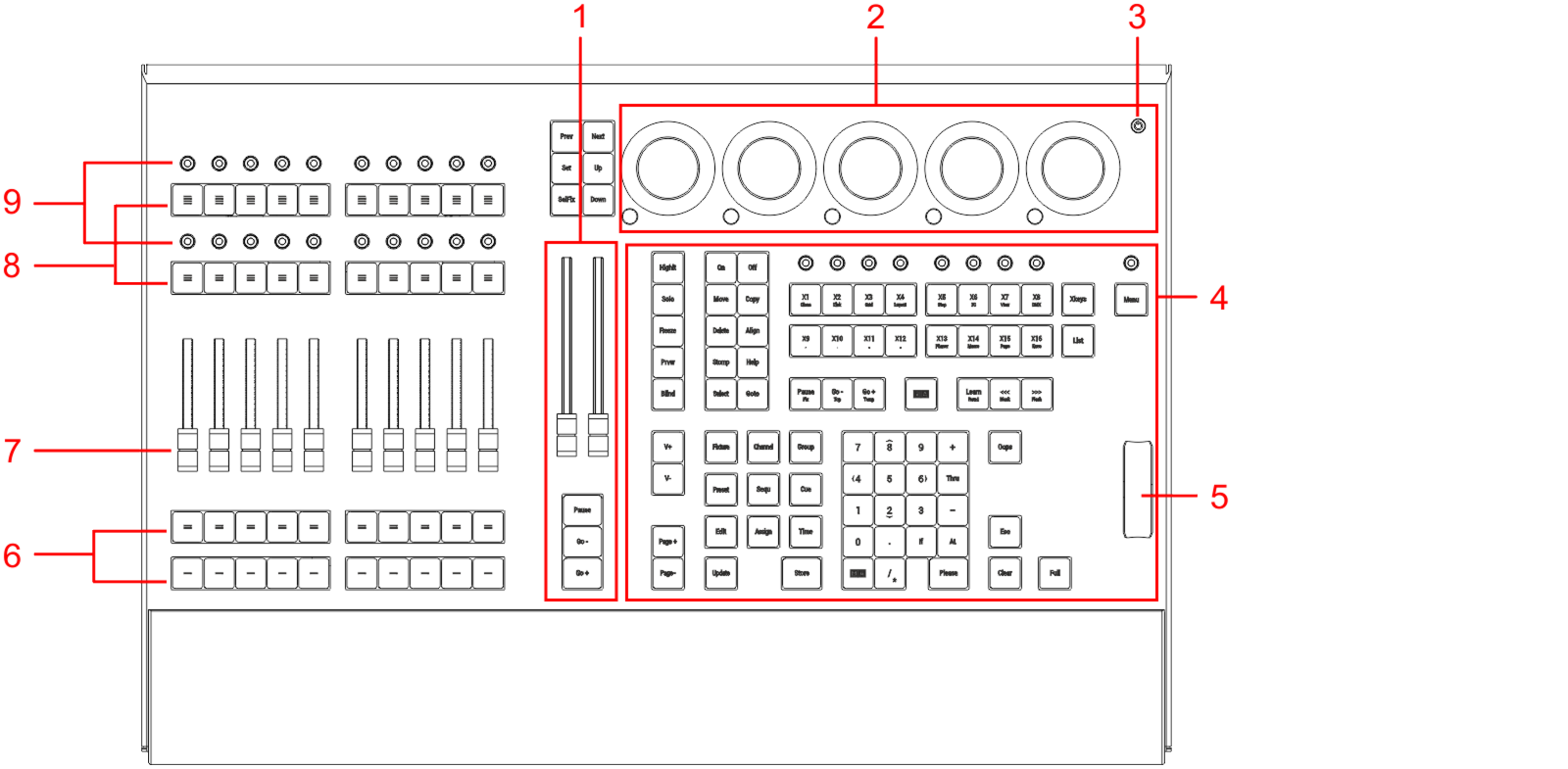

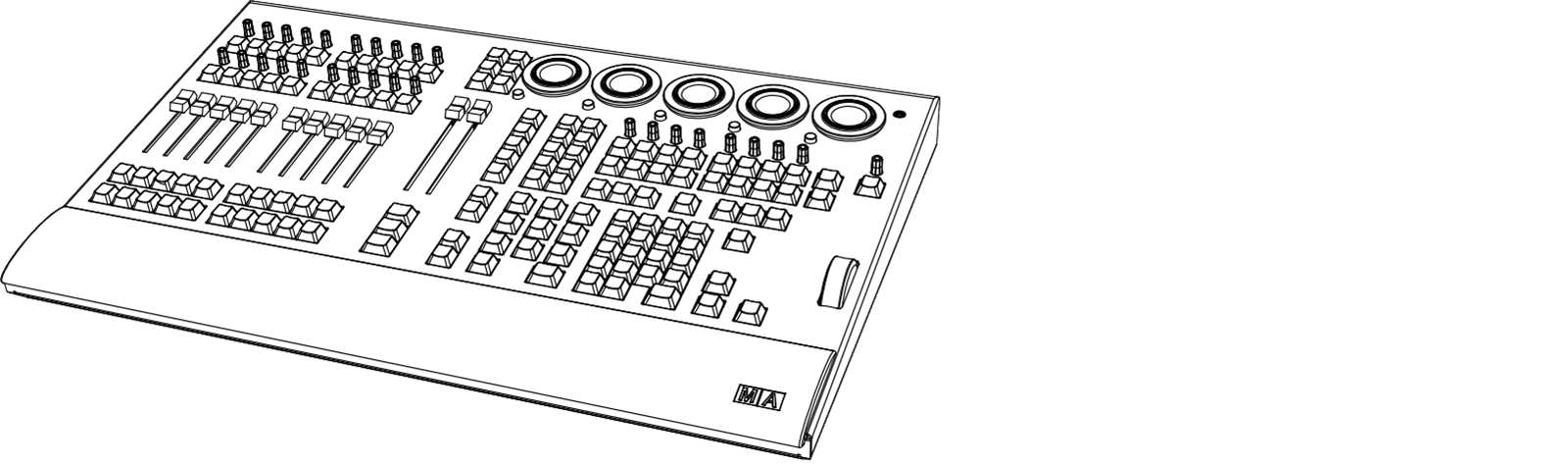

grandMA3 onPC command wing XT front panel
  1. Master area
  2. Dual encoder section
  3. Power key
  4. Command area
  5. Level wheel
  6. Executor buttons 101-110 + 201-210
  7. Executor faders 201-210
  8. Executor buttons 301-310 + 401-410
  9. Executor knobs 301-310 + 401-410

For more information about executors, see Executor elements.

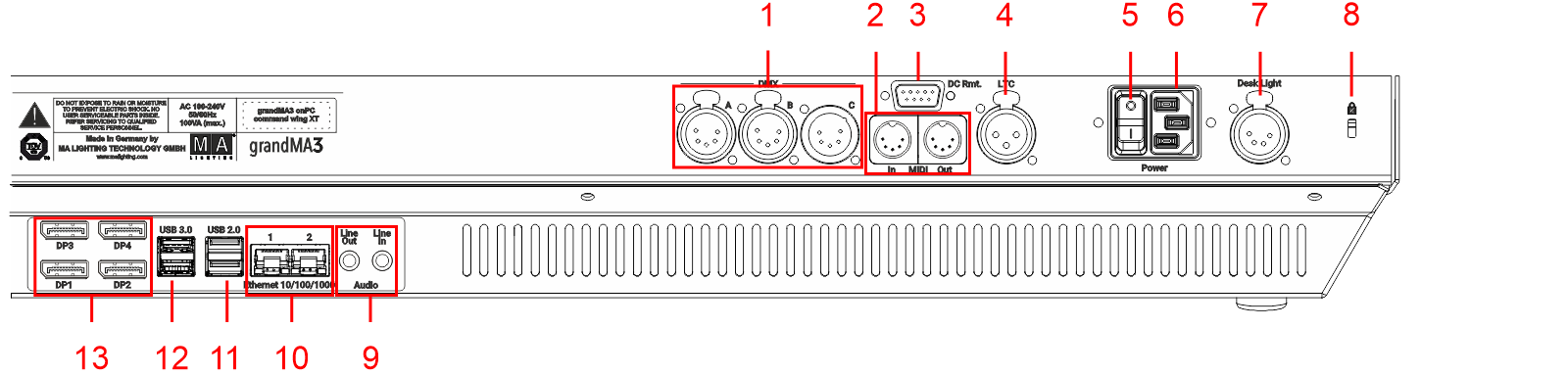

grandMA3 onPC command wing XT rear panel
  1. DMX-512-A A-B (5pin XLR female) + C (5pin XLR male)
  2. MIDI In+Out
  3. DC Remote Control
  4. LTC
  5. Power switch
  6. IEC connector
  7. Desk light
  8. Kensington lock
  9. Line In+Out
  10. Ethernet 1+2
  11. USB 2.0
  12. USB 3.0
  13. DisplayPort 1-4

For technical specifications see Technical Data in the grandMA3 Quick Manual onPC command wing XT.
