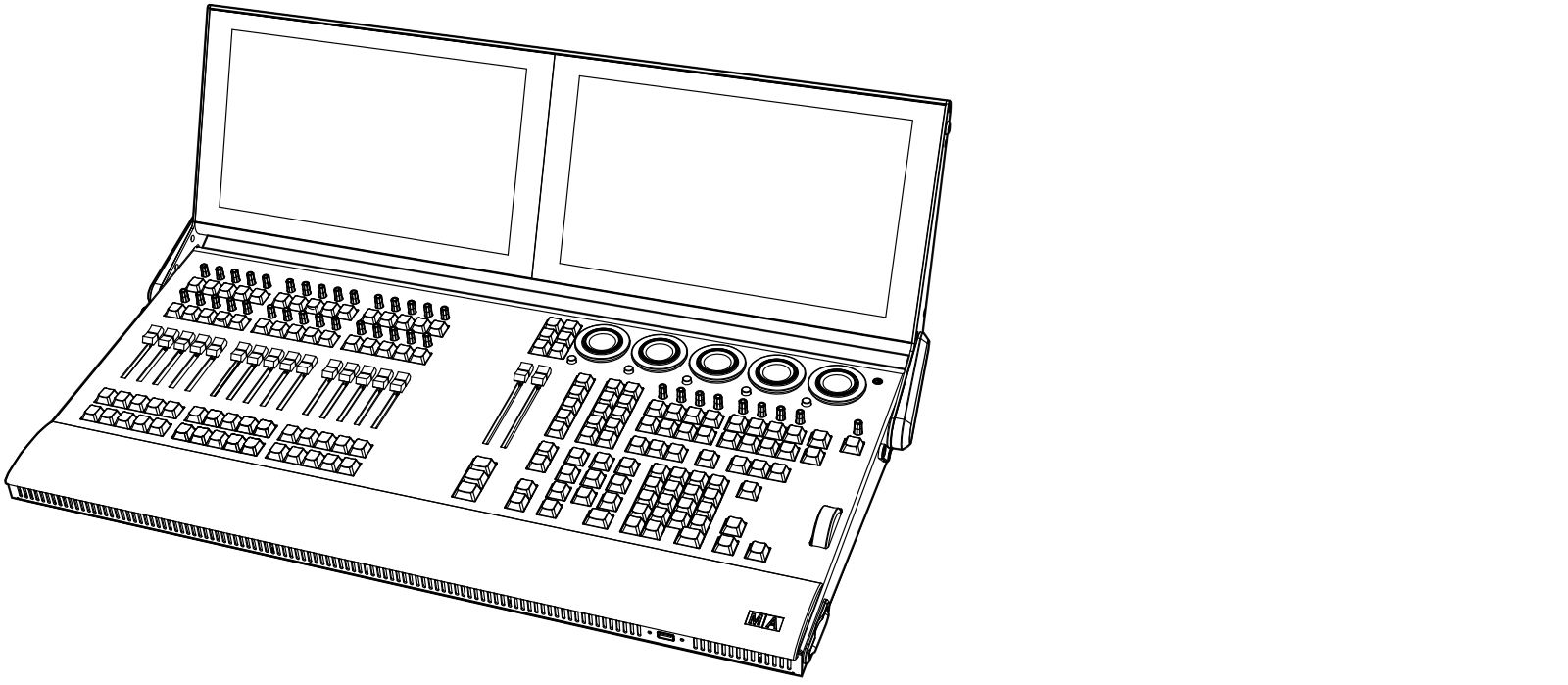

grandMA3 compact XT

grandMA3 User Manual » Device Overview » grandMA3 consoles » grandMA3 compact XT

Version 2.3

1. Screens 1+2
2. Power key
3. Level wheel
4. Command section
5. Xkeys
6. Master section
7. Executor section

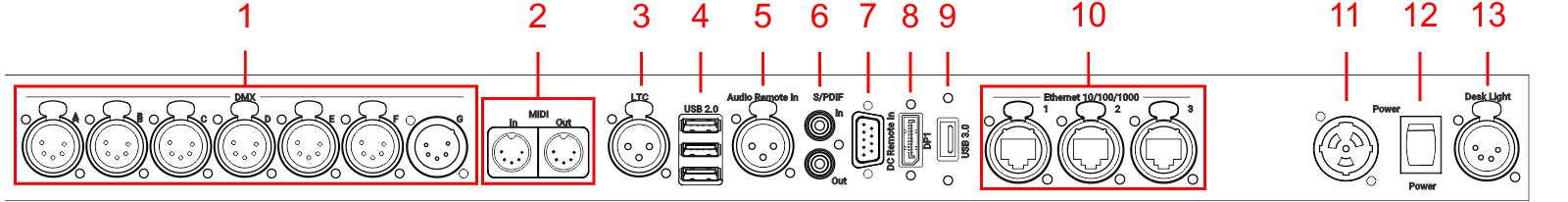

1. DMX-512-A A-F (5pin XLR female) + G (5pin XLR male)
2. MIDI In+Out
3. LTC
4. USB 2.0
5. Audio Remote In
6. S/PDIF In+Out
7. DC Remote Control
8. DisplayPort 1
9. USB 3.0
10. Ethernet 1-3
11. powerCON TRUE1
12. Power switch
13. Desk light

For technical specifications, see Technical Data in the grandMA3 Quick Manual consoles.
